Baofeng BF-R-760 Water & Dust-Proof Walkie Talkie (1piece) with 1 Year Warranty.

14,499.00

Introducing our Original Baofeng BF-R-760 Water & Dust-Proof Walkie-Talkie with Digital Dualband capability, which is designed to deliver dependable and affordable communication in a range of up to 6km in extreme weather conditions. Our radios come equipped with a powerful 1 Watt loudspeaker and 5 watts of output power.

Perfect for any use:

High rising buildings, Hotels, Markets, Security guards, Traveling, Banks, Law Enforcement Agencies, Gov-offices, Factories, Companies, Private offices, Industries, Super Stores Restaurants, Schools & many more.

Out of stock

Add to Wishlist
Add to Wishlist

Description

RANGE TEST OF BAOFENG BF-R-760

Functions:

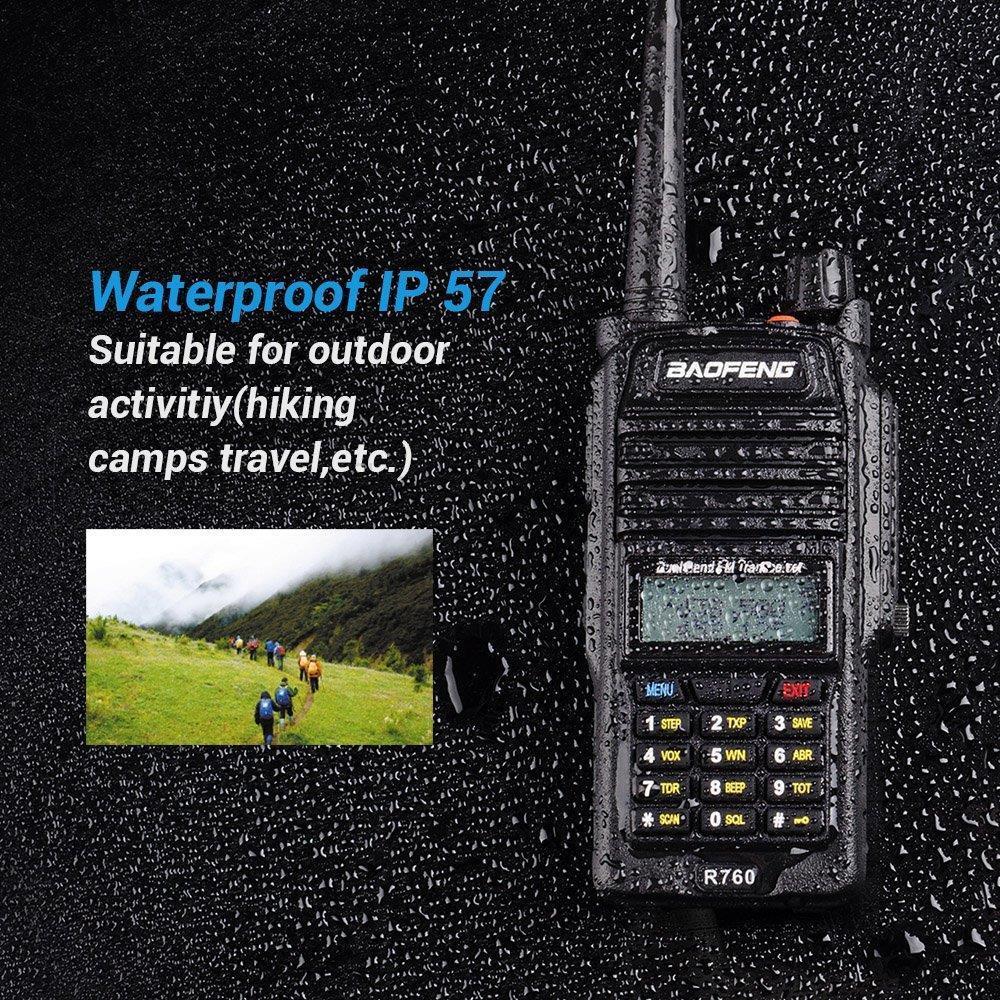

IP57 Waterproof resisting two way radio

Drop resistance

30 minutes diving under 1 meter depth water

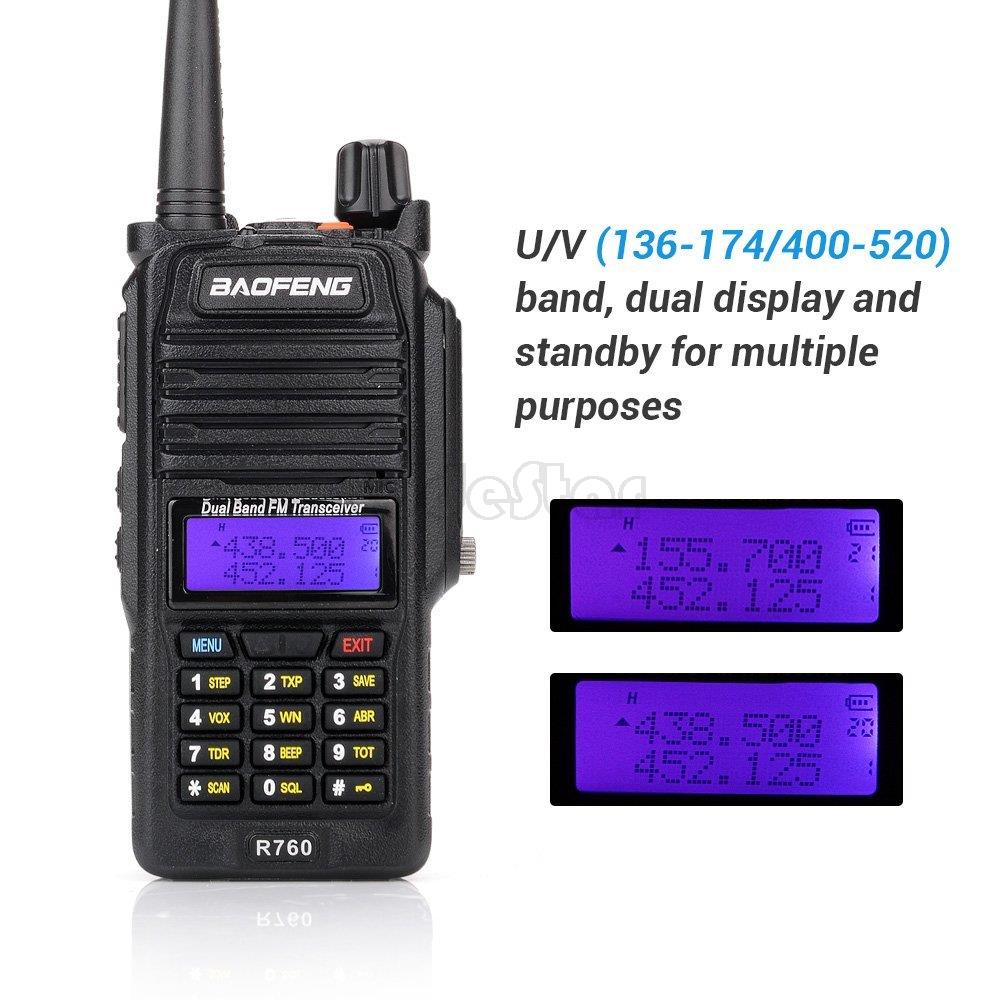

Dual band handheld transceiver with display and keypad

Frequency Range VHF 136-174MHz & UHF 400-520MHz

Up to 128 memory channels

Cross band reception/transmission

A variety of display channel number, frequency, channel frequency, channel name etc.

CTCSS/DCS

Tone end of transmission

Function “VOX”(voice operated transmission)

DTMF emergency alarm

ANI Code

Selectable frequency Step 2.5/5/6.25/10/12.5/20/25/50KHz

Frequency Reverse

Battery saving function ”SAVE”

Emergency SOS sound and light alarm

Programmable by PC

Broadband(wide 25KHz)/Narrowband(Narrow 12.5KHz) selectable

Commercial FM radio receiver (65-108MHz)

Display Illumination and programmable keyboard

Built-in LED flashlight

Specifications:

General
Frequency Range 65-108MHz(commercial FM radio reception only)

VHF:136-174MHz(Rx/Tx)

UHF:400-520MHz(Rx/Tx)

Memory Channels 128
Frequency Stability 2.5ppm
Frequency Step 2.5/5/6.25/10/12.5/20/25KHz
Antenna Impedance 50 ohm
Operating Temperature -20°c ~+60°c
Battery Type DC7.4V 1800mAh Li-ion Battery
Consumption in reception 380mA
Consumption in transmission ≤1.4A
Mode of Operation Simplex or semi-duplex
Duty cycle 03/03/54min.(Rx/Tx/Standby)
Dimensions 58*110*32mm
Weight 130g(approximate)
Transmitter
RF Power 5W/1W
Type of Modulation FM
Emission Class 16K Ø F3E/11K Ø F3E
Maximum deviation ≤±5KHz/ ≤±2.5KHz(W/N)
Spurious emissions ≤-60dB
Receiver
Sensitivity 0.2uV(12dB SINAD)
Intermodulation 60dB
Audio Output 1W
Spurious Radiation ≥65dB



Package Content:

1x Baofeng BF-R-760 (136-174 MHz (VHF) 400-520 MHz (UHF) 128 Channels Handheld Radio

1x 7.4V 1800mAh Li-ion battery pack

1x Dual-band antenna

1x Belt clip

1x User manual

1x Desktop charger (100V ~ 240V)

1x Handstrap.
